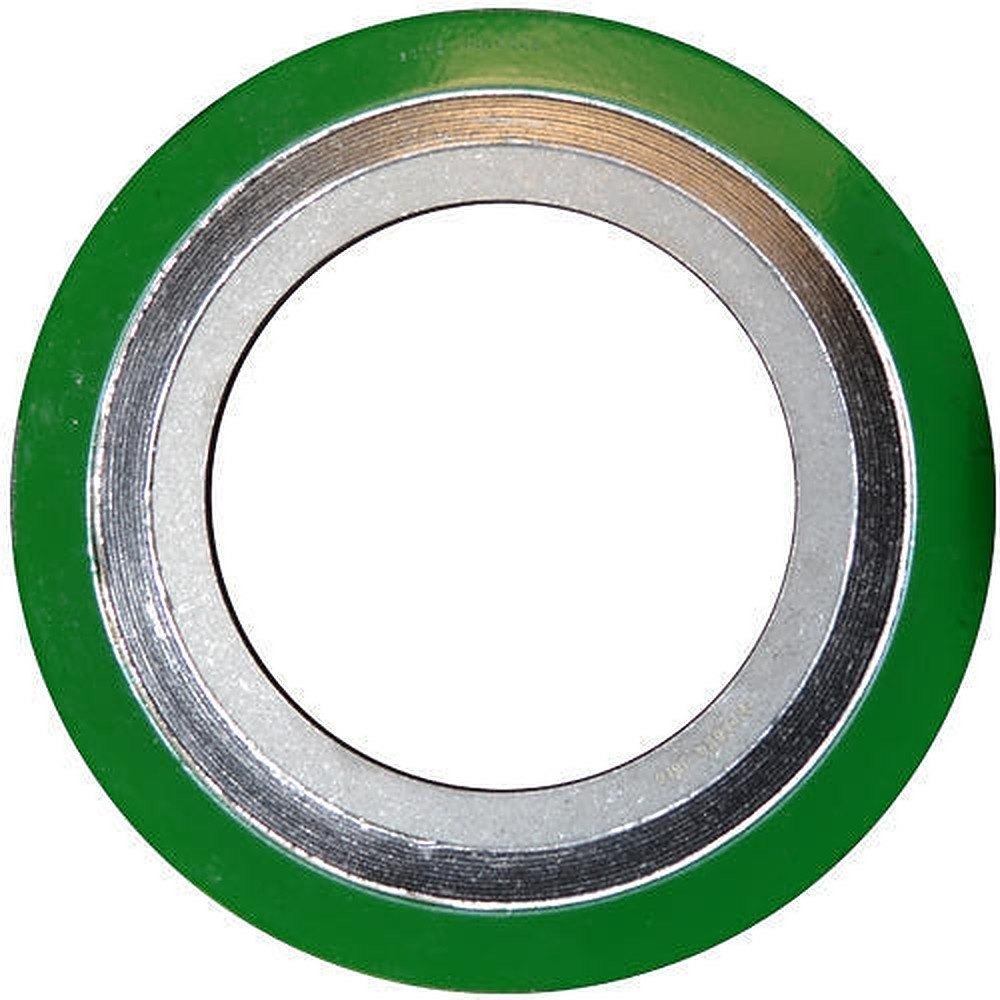

Spiral Wound Gaskets
Reliable Sealing Solutions for High-Pressure & High-Temperature Applications
Our Spiral Wound Gaskets are precision-engineered to provide exceptional sealing performance in demanding industrial environments. Combining metal and filler materials wound into a resilient spiral, these gaskets offer outstanding resistance to pressure, temperature, and chemical exposure, making them ideal for pipelines, flanges, heat exchangers, and other critical equipment.
Robust Construction: Alternating layers of metal (typically stainless steel) and flexible filler material (graphite, PTFE, or mica) provide strength and sealing flexibility.
High Pressure & Temperature Resistance: Suitable for pressures up to 6000 psi and temperatures ranging from -200°C to +900°C, depending on materials used.
Chemical Compatibility: Compatible with a wide range of fluids, including steam, oils, acids, and gases.
Excellent Recovery & Resilience: The spiral wound design allows the gasket to maintain seal integrity despite thermal cycling and flange movements.
Customizable: Available in various sizes, thicknesses, and filler materials to match specific industrial requirements.
Specification | Details |
|---|
Metal Type | Stainless Steel (304, 316, Inconel, Monel) |
Filler Material | Graphite, PTFE, Mica, Non-Asbestos Materials |
Pressure Rating | Up to 6000 psi (varies by design) |
Temperature Range | -200°C to +900°C (material dependent) |
Standard Sizes | Customizable per flange dimensions |
Compliance | ASME, API, DIN, ISO standards |
Oil & Gas pipelines and refineries
Chemical processing plants
Power generation and steam turbines
Petrochemical and pharmaceutical industries
Water treatment and desalination plants
HVAC systems and heat exchangers
✅ Premium Materials for long-lasting durability and safety
✅ Custom Manufacturing tailored to your flange sizes and specifications
✅ Strict Quality Control ensuring leak-proof performance under extreme conditions
✅ Competitive Pricing & Fast Delivery across UAE including Dubai, Abu Dhabi, and Sharjah
✅ Expert Technical Support to help you select the perfect gasket for your application
Q: Can spiral wound gaskets be reused?
A: It is generally recommended to replace gaskets after removal to ensure proper sealing integrity.
Q: What filler materials are best for chemical resistance?
A: PTFE and graphite fillers offer excellent chemical resistance and temperature tolerance.
Q: Are these gaskets suitable for high-temperature steam applications?
A: Yes, especially those with graphite fillers and stainless steel winding.
Q: Do you provide custom sizes?
A: Yes, we manufacture spiral wound gaskets to fit any flange size and specification.
