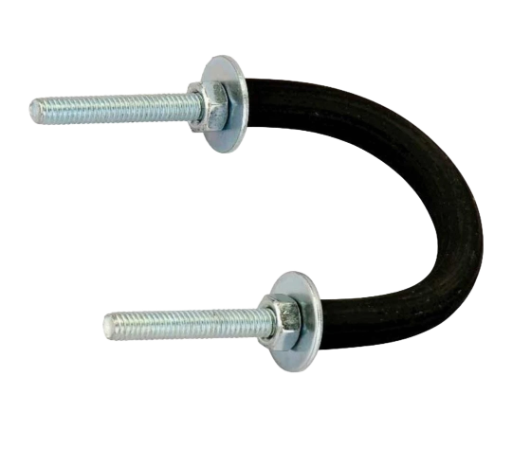

Rubber Lined U-Bolts
Vibration-Dampening & Corrosion-Protected Pipe Supports
Our Rubber Lined U-Bolts are specially designed for secure clamping of pipes, tubes, and conduits while protecting them from vibration, corrosion, and abrasion damage. Featuring a durable steel U-bolt with a bonded rubber lining, they are ideal for HVAC, plumbing, marine, and industrial piping systems.
Heavy-Duty Construction: Made from carbon steel or stainless steel for high strength and durability.
Protective Rubber Lining: Prevents metal-to-metal contact, reducing wear, vibration, and noise.
Corrosion Resistance: Available with zinc-plated, hot-dip galvanized, or stainless steel finish.
Vibration Dampening: Rubber layer absorbs shocks and minimizes operational noise.
Custom Sizes Available: Supplied in various diameters, thread sizes, and leg lengths to suit your application.
Specification | Details |
|---|---|
Material | Carbon Steel / Stainless Steel (SS304 / SS316) |
Lining Material | EPDM / Neoprene Rubber |
Finish | Zinc-Plated / Hot-Dip Galvanized / Stainless Steel |
Pipe Size Range | ½" to 12" (custom sizes available) |
Thread Size | M6 to M16 |
Temperature Resistance | -20°C to +110°C (depending on rubber type) |
Features | Anti-vibration, corrosion-resistant, noise-dampening |
Supporting and clamping HVAC and refrigeration pipelines
Securing plumbing, gas, and water pipes
Industrial and chemical processing piping systems
Marine and offshore pipe installations
Cable tray and conduit support systems
✅ Vibration & Noise Reduction – Rubber lining cushions the pipe for quieter operation
✅ Corrosion-Resistant Materials – Long service life in harsh environments
✅ Pipe Protection – Prevents damage from metal-to-metal contact
✅ Custom Fabrication Available – Made to order for your exact pipe size
✅ Fast Delivery Across UAE – Covering Dubai, Abu Dhabi, Sharjah and more
✅ Trusted Supplier – High-quality products with full technical support
Q: Why are rubber lined U-bolts better than standard U-bolts?
A: The rubber lining prevents vibration, reduces noise, and protects the pipe surface from abrasion and corrosion.
Q: Can they be used outdoors or in corrosive environments?
A: Yes, especially the stainless steel variants which offer excellent corrosion resistance.
Q: Are different rubber types available?
A: Yes, EPDM or neoprene rubber options are available based on temperature and chemical resistance needs.
Q: Do you offer custom sizes?
A: Absolutely. We manufacture U-bolts in custom diameters and lengths to match your project specifications.
