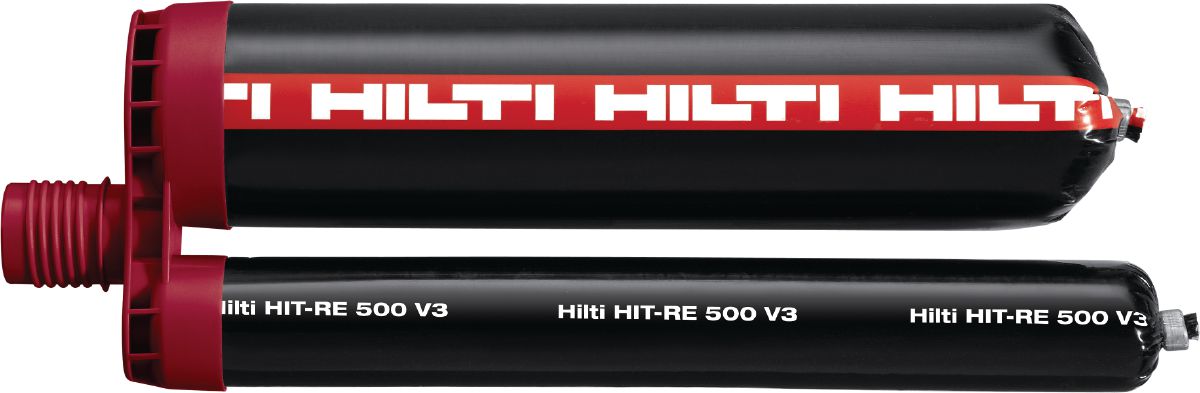

Hilti HIT-RE 500 V3
Premium-Grade Epoxy Anchor with Structural & Seismic Approval
The Hilti HIT‑RE 500 V3 is a high-performance, injectable epoxy mortar engineered for structural anchoring, post-installed rebar connections, and heavy-duty fastening in concrete—even under seismic, fire, and wet conditions. Ideal for critical infrastructure, structural retrofits, and demanding architectural applications.
Approved for cracked and un-cracked concrete, including wet, submerged, and water-filled holes
Certified for seismic performance and fire resistance (ICC‑ES, ETA‑16/0142, ETA‑16/0143)
Cures at low ambient temperatures down to −5 °C (23 °F) for all‑year use
Extended working time, allowing for deeper embedment and flexible installation on large projects
Compatible with diamond‑cored holes when used with TE‑YRT roughening tool — the only resin anchor with ICC‑ES approval for cored concrete
Specification | Details |
|---|---|
Base Material | Cracked / Uncracked Concrete, Natural Stone |
Base Conditions | Dry, Wet, Water-Filled, Submerged |
Anchor Sizes Supported | M8–M30 threaded rods; Rebar Ø8–Ø40 mm (#3–#10) |
Working Time (at ~20 °C) | ~30 minutes |
Full Cure (at ~20 °C) | ~7 hours |
Temperature Range (In-Service) | −40 °C to +70 °C |
Storage Range | +5 °C to +25 °C |
Clean Hole Methods | SafeSet automatic, compressed-air, or manual |
Software Support | PROFIS Anchor design software |
Structural rebar dowels and post-installed reinforcement (wall, slab, column, staircase, and foundation connections)
Retrofitting and strengthening of industrial buildings, bridges, and tunnels
Anchoring steel structures, façade supports, safety barriers, and machinery
Seismic-rated fastening in critical infrastructure
Suitable for use in natural stone and timber (e.g. CLT/GLT)
High structural performance with global certification for safety-critical use
Reliable curing in wet and cold conditions, ensuring no load reduction in saturated concrete
Seamless integration with Hilti SafeSet® cleaning system, enabling fast, dust-free installation
Extended working window, reducing installation risks in deep or complex anchor pods
Excellent chemical resistance, tested against hydrocarbons, oil, acids, alkalis, and water
Offers electrical insulation—non-conductive once cured (resistivity ~66×10¹² Ω·m)
Proven long-term stability under high temperatures, load and creep testing
Q: Can I install HIT‑RE 500 V3 in standing water?
A: Yes—approved for water-filled, saturated, and submerged concrete, including underwater installation.
Q: Does this anchor work in diamond-cored holes?
A: Yes—when used with the TE‑YRT roughening tool, it is one of the very few epoxy anchors approved for cored holes in cracked concrete.
