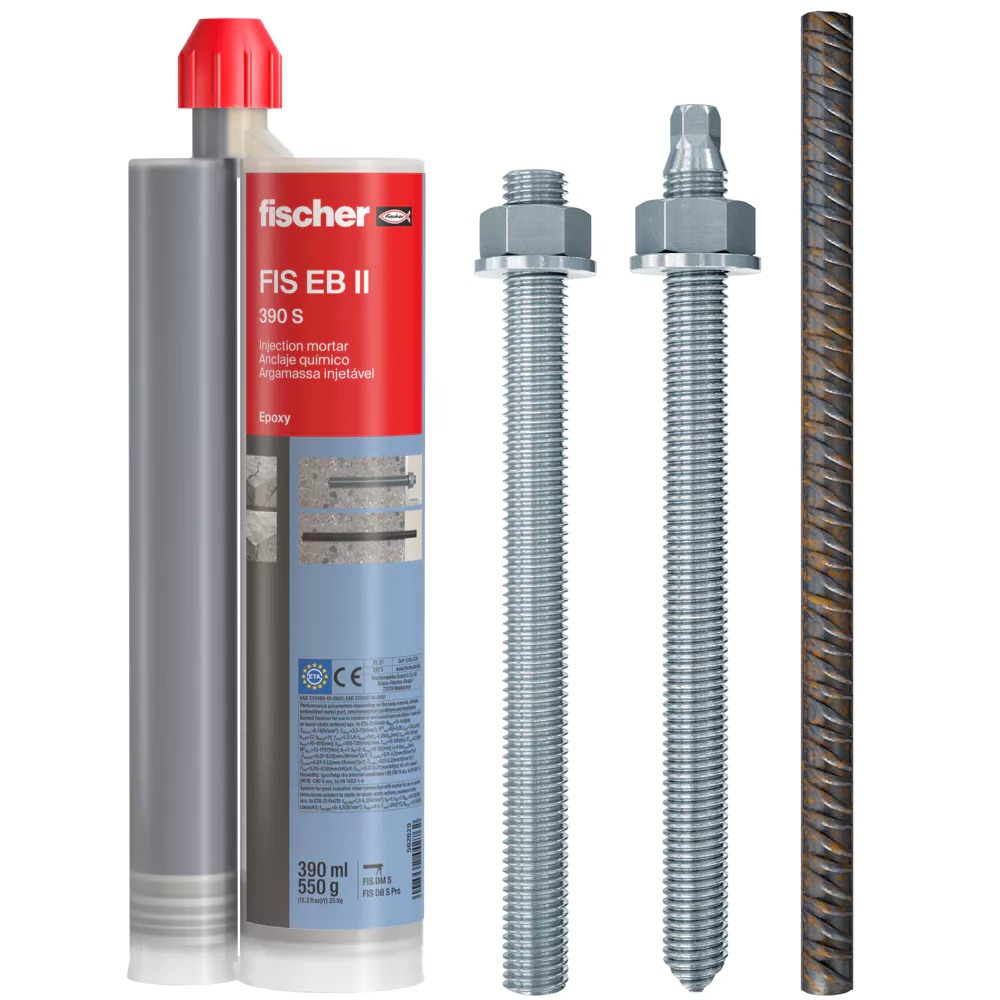

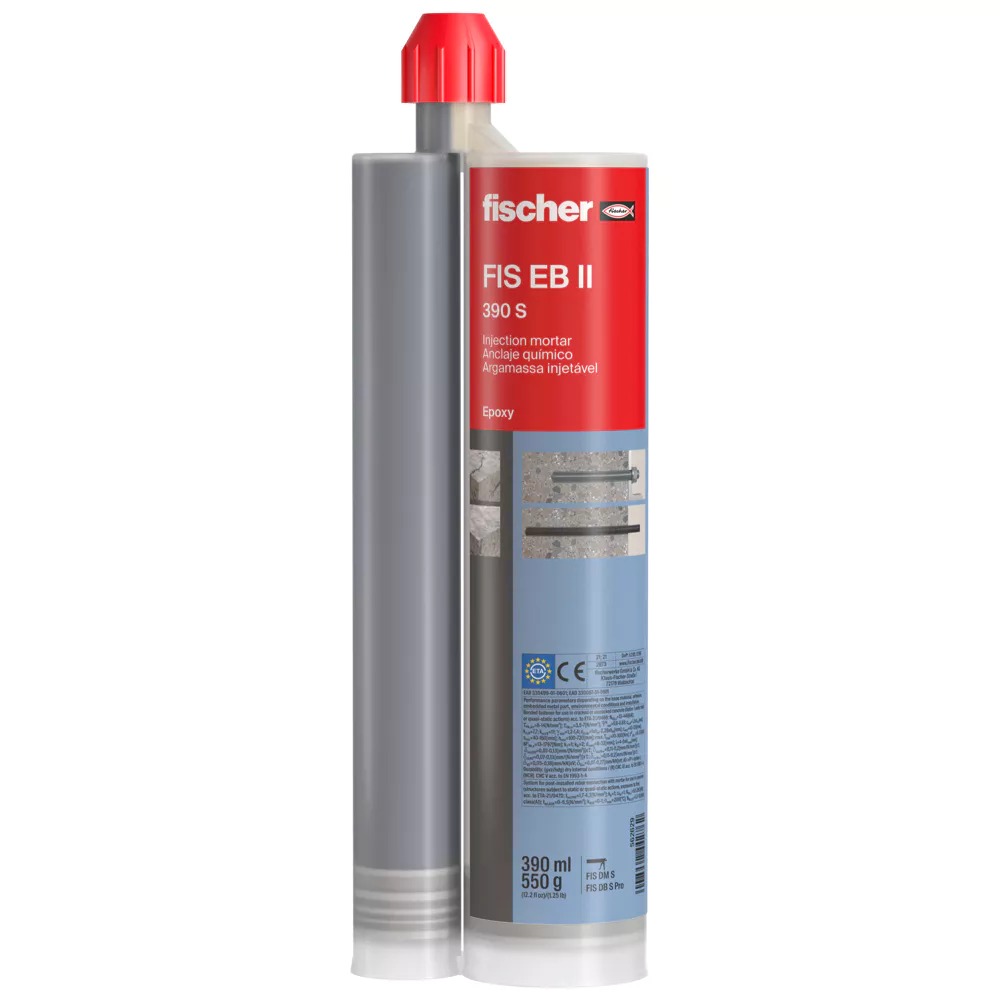

Fischer Epoxy Mortar FIS EB II 390 S
High-Performance Chemical Anchor System
The Fischer FIS EB II 390 S is a premium-grade epoxy mortar engineered for the most demanding anchoring applications in concrete and structural construction. It delivers exceptional bond strength, precision, and reliability — making it the preferred choice for structural steel connections, rebar installations, and heavy-duty anchoring in both dry and wet concrete environments.
Exceptional Load-Bearing Capacity: Designed for high-performance structural fixings where maximum strength and safety are critical.
Extended Working Time: Allows secure placement of anchors and rebars even under challenging site conditions.
High Chemical and Temperature Resistance: Suitable for industrial, marine, and outdoor applications.
Approved for Rebar Connections: Ideal for post-installed rebar applications per international standards.
No Expansion Pressure: Enables installation close to edges or with minimal spacing.
Excellent Adhesion on Concrete & Masonry: Reliable bonding even on rough or uneven surfaces.
Property | Description |
|---|---|
Product Name | Fischer Epoxy Mortar FIS EB II 390 S |
Base Material | Pure Epoxy Resin |
Packaging | 390 ml Cartridge |
Application Temperature | +5 °C to +40 °C |
Curing Time (at 20 °C) | Approx. 12 hours |
Compressive Strength | ≥ 85 N/mm² |
Tensile Strength | ≥ 25 N/mm² |
Shelf Life | 24 months (unopened, cool & dry storage) |
Approvals / Standards | ETA, ASTM, and ICC-ES certified |
Structural steel column base plates
Heavy machinery anchoring
Post-installed rebar connections
Industrial foundation bolts
Bridge, tunnel, and infrastructure projects
Chemical and marine environments
Threaded Rods (FIS A, FIS A I)
Rebars (Ø 8 mm – Ø 40 mm)
Internal Threaded Anchors (RG M I)
Anchor Sleeves for Hollow Materials
Drill Hole – to required diameter and depth.
Clean Thoroughly – using brush and blow-out pump.
Inject Epoxy Mortar – starting from hole bottom outward.
Insert Anchor or Rebar – slowly rotate during insertion.
Allow Full Cure – before applying load.
✅ German-engineered for maximum performance and reliability
✅ Suitable for critical structural and safety applications
✅ Certified and tested under international standards
✅ Available with static mixer and application gun
✅ Fast UAE delivery and expert technical support
We are an authorized supplier of Fischer Chemical Anchoring Systems, offering complete support from product selection to site delivery across Dubai, Abu Dhabi, Sharjah, and the Northern Emirates.
