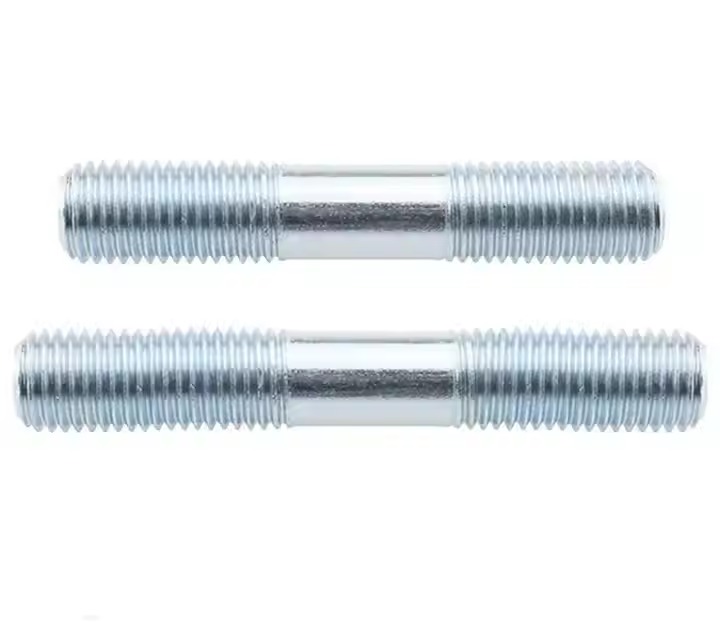

Double-End Stud Bolts
Dual-Threaded Versatility for Heavy-Duty Applications
Double-End Stud Bolts are highly versatile, dual-threaded fasteners designed for use in situations where both ends need to be securely threaded into two different components. Ideal for machinery, industrial equipment, automotive, piping, and heavy-duty installations, these bolts are engineered for strength, durability, and easy installation.
✅ Dual Thread Design – Both ends of the bolt are threaded for easy attachment to nuts, flanges, or other components.
✅ High-Strength Materials – Made from carbon steel, stainless steel, or alloy steel for enhanced strength and corrosion resistance.
✅ Precision-Engineered Threads – Ensures secure engagement and prevents thread damage or slippage.
✅ Standard and Custom Lengths – Available in a variety of lengths and thread sizes to fit your specific needs.
✅ Corrosion-Resistant Options – Available in galvanized, stainless steel, and coated finishes to withstand harsh environments.
✔ Durable & Secure Fastening – Provides a reliable and long-lasting solution for applications that require high tensile strength.
✔ Easy Installation – No need for additional nuts or welding; simply screw into pre-tapped holes for quick assembly.
✔ Versatile Applications – Suitable for a wide range of industries, including construction, marine, oil and gas, automotive, and more.
✔ Resistance to Vibration – Double-end studs can help reduce loosening from vibration in dynamic environments.
✔ Cost-Effective – Reusable and available in bulk, offering a cost-effective solution for large-scale projects.
Specification | Details |
|---|---|
Material | Carbon Steel, Alloy Steel, Stainless Steel (304/316), Brass |
Finish Options | Zinc Plated, Hot-Dip Galvanized, Stainless Steel, Black Oxide |
Thread Type | UNC, UNF, Metric (Coarse/Fine) |
Thread Length | Full-Length, Partial (Customizable) |
Size Range | M6 to M30 / 1/4" to 1-1/4" |
Standard Length | 2” to 12” (custom lengths available) |
Strength Rating | Up to 150,000 PSI tensile strength |
Nominal Dia (in) | Thread Size | Thread Length (A) | Thread Length (B) | Body Length (C) | Standard |
|---|---|---|---|---|---|
1/2" | UNC 13 | 1.25" | 1.25" | 2.5" | ASME B18.31.2 |
5/8" | UNC 11 | 1.50" | 1.50" | 3.0" | ASME B18.31.2 |
3/4" | UNC 10 | 1.75" | 1.75" | 3.5" | ASME B18.31.2 |
1" | UNC 8 | 2.00" | 2.00" | 4.0" | ASME B18.31.2 |
Grade | Material | Standard | Tensile Strength (Min) | Yield Strength (Min) | Temp Range |
|---|---|---|---|---|---|
ASTM A193 B7 | Alloy Steel | ASTM A193 | 860 MPa (125 ksi) | 725 MPa (105 ksi) | -29°C to 427°C |
ASTM A193 B8 | Stainless Steel 304 | ASTM A193 | 515 MPa (75 ksi) | 205 MPa (30 ksi) | up to 870°C |
ASTM A193 B8M | Stainless Steel 316 | ASTM A193 | 515 MPa (75 ksi) | 205 MPa (30 ksi) | Marine grade |
ASTM A320 L7 | Low Temp Alloy Steel | ASTM A320 | 860 MPa (125 ksi) | 725 MPa (105 ksi) | -101°C to 593°C |
🔩 Flanged Connections (Piping & HVAC)
🔩 Machinery Assembly
🔩 Automotive and Engine Components
🔩 Oil & Gas Industry
🔩 Marine & Offshore Installations
🔩 Heavy Construction Equipment
✔ Precise Threading for Secure Engagement
✔ Customizable Lengths and Thread Sizes to Meet Your Needs
✔ Exceptional Load-Bearing Capacity
✔ Corrosion-Resistant Options Available for Harsh Environments
✔ Bulk Orders & Competitive Pricing for Large Projects
✔ Meets Industry Standards: ASTM, ANSI, ISO
Q1: What are the primary uses for Double-End Stud Bolts?
A: These bolts are widely used in flange connections, machinery assembly, pipe supports, and vibration-sensitive applications, as they allow both ends to be secured in place.
Q2: Are custom lengths available?
A: Yes, we offer custom lengths and thread sizes based on your specific requirements.
Q3: Can Double-End Stud Bolts be used in marine applications?
A: Absolutely. Our stainless steel and galvanized options are perfect for marine and outdoor environments due to their corrosion resistance.
Q4: What is the load capacity of your Double-End Stud Bolts?
A: Load capacity depends on the material and size, but our bolts are designed for heavy-duty applications and can support up to 150,000 PSI tensile strength.
Q5: Do you provide nuts to fit the Double-End Stud Bolts?
A: Yes, we offer matching nuts that are compatible with our stud bolts for your convenience.
