How to Choose Threaded Rods and U-Bolts for HVAC Suspension & Pipe Support

When it comes to HVAC systems, reliability isn’t just about the units themselves — it’s about the entire support system. Threaded rods and U-bolts play a crucial role in the suspension and stability of HVAC piping and ductwork, especially in large-scale mechanical, electrical, and plumbing (MEP) projects across the UAE and GCC region.

Selecting the right fasteners ensures safety, longevity, and compliance — three factors no engineer or contractor can afford to overlook.

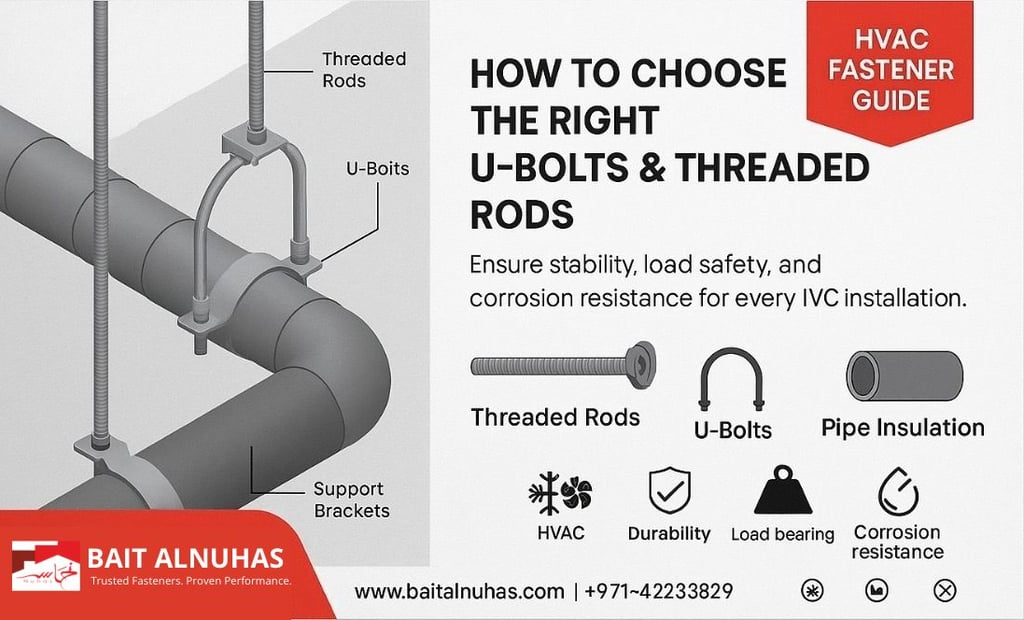

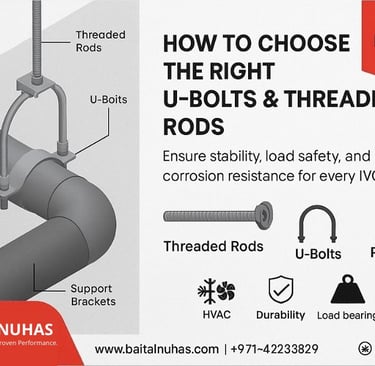

What Are Threaded Rods and U-Bolts?

Threaded Rods
Threaded rods (also known as all-thread or stud bolts) are long steel bars with threads along the entire length. They’re designed to carry tensile loads and are typically used in suspension applications, where they support HVAC ducts, cable trays, and equipment by hanging them from structural elements.

• Common sizes: M6 to M20 (metric)

• Materials: Carbon steel, stainless steel (304/316), hot-dip galvanized

• Thread types: Full-threaded (standard), coarse or fine pitch

U-Bolts
U-bolts are curved bolts in a "U" shape, threaded on both ends. In HVAC systems, they are used to secure piping to support brackets, walls, or ceilings.

• Pipe sizes: Typically matched to NPS (Nominal Pipe Size) from ½” to 8”

• Coatings: Zinc-plated, HDG, PTFE-coated for corrosion resistance

• Material strength: 4.6 to 8.8 grade carbon steel and SS 316 for harsh environments



Why They Matter in HVAC Suspension and Pipe Support

Proper selection of threaded rods for HVAC suspension systems and u-bolts for HVAC pipe support helps achieve:

• Stable Load Distribution: Prevents vibration and reduces strain on piping joints

• Corrosion Resistance: Especially critical in coastal or chemical environments

• Code Compliance: Meets international mechanical and plumbing standards

• Safety Assurance: Prevents system failure or collapse in high-rise or industrial setups

Bait Alnuhas provides engineer-trusted threaded rods and U-bolts in various finishes and load ratings, ideal for both commercial and industrial projects.

Key Considerations When Choosing Threaded Rods for HVAC Suspension Systems

When selecting threaded rods, here’s what HVAC engineers and MEP contractors should evaluate:

1. Load-Bearing Capacity

• Match the tensile strength of the rod to the expected load.

• MEP specs often demand Grade 4.8 or 8.8 rods for critical suspension.



2. Material & Finish

• Galvanized steel for indoor applications

• Hot-dip galvanized (HDG) or SS316 for rooftops and coastal environments



3. Thread Length & Compatibility

• Ensure compatibility with nuts, washers, and brackets.

• Full threads offer better adjustment for HVAC leveling.



4. Environmental Conditions

• For chilled water systems with condensation, corrosion resistance is essential.

• Fire-rated coatings may be required for compliance in certain buildings.



Key Considerations When Choosing U-Bolts for HVAC Pipe Support

1. Pipe Diameter & Shape

• Select U-bolts that fit exact pipe outer diameter (OD).

• Consider saddle U-bolts for additional pipe protection.



2. Vibration Damping

• Use rubber-coated or cushioned U-bolts to reduce metal-to-metal contact.

• Vital for fan coil unit piping or high-flow chilled water lines.



3. Installation Location

• Use zinc-plated for indoor use, HDG or SS316 for outdoor/roof applications.



4. Alignment & Spacing

• Proper spacing ensures pipe integrity and reduces thermal stress.

• Align with support hangers to avoid strain or misalignment.



Common Mistakes to Avoid in Selection and Installation

• Underrating load specs: Always check the MEP design load table.

• Skipping corrosion protection: Leads to long-term failure in humid environments.

• Improper sizing: Loose U-bolts or undersized rods cause vibration and system noise.

• Lack of seismic bracing: Especially important in high-rise or sensitive installations.



Real-World Use Case: HVAC Chilled Water Lines in Dubai

In a recent commercial tower project in Business Bay, Bait Alnuhas supplied HDG threaded rods and rubber-lined U-bolts for a high-capacity chilled water system. The project required:

• Load-rated M12 rods for ceiling-mounted duct supports

• Cushioned U-bolts to dampen vibration across 100+ meters of piping

• All fasteners were delivered with compliance certificates and exact sizing — ensuring zero delays during inspection and installation

This approach minimized vibration, enhanced support longevity, and passed local authority inspections without rework.

Conclusion: Choose Right, Support Strong

Threaded rods for HVAC suspension systems and U-bolts for HVAC pipe support are more than just hardware — they are the backbone of a safe and efficient HVAC structure.

Choosing the right specs ensures not only mechanical integrity but also long-term operational safety and compliance.
