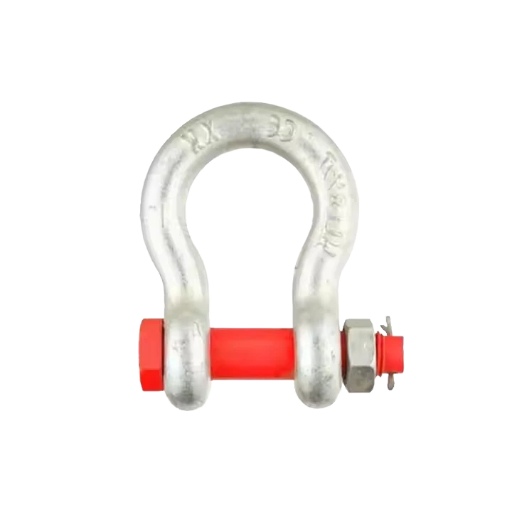

Bow Shackle

Heavy-Duty Lifting & Rigging Connector

The Bow Shackle, also known as an anchor shackle, is a critical component for lifting, rigging, towing, and load-securement operations. Featuring a wider “bow” shape compared to D-shackles, it allows for multi-directional loading and greater flexibility in connections. Constructed from high-strength steel and available in various finishes like hot-dip galvanized or stainless steel, it offers durability and corrosion resistance for both indoor and outdoor applications.

  • High-Strength Forged Steel Construction
    Ensures maximum load-bearing capacity and safety in heavy-duty applications.

  • Wide Bow Design
    Allows connection of multiple slings and greater range of motion under load.

  • Corrosion-Resistant Finishes
    Available in hot-dip galvanized, electro-galvanized, and stainless steel options.

  • Screw Pin or Bolt-Type Closure
    For quick installation or added security in permanent setups.

  • Load-Tested & Certified
    Complies with international safety and load-bearing standards.

Parameter

Details

Type

Bow / Anchor Shackle

Material

Forged Carbon Steel / Stainless Steel

Finish

Galvanized / HDG / SS304 / SS316

Pin Type

Screw Pin / Safety Bolt & Nut

Size Range

1/4" to 2" (6 mm to 50 mm)

Working Load Limit

Up to 50 Tons (varies by size)

Standards

ASTM A153 / EN 13889 / CE Certified

  • Marine & Offshore operations

  • Lifting and rigging systems

  • Industrial construction and infrastructure

  • Transport and logistics tie-downs

  • Agricultural and utility sectors

  • Enhanced flexibility with wide bow profile

  • Rugged, long-lasting performance under extreme conditions

  • Quick installation and secure locking

  • Suitable for vertical, angular, or side loading

  • Safe and reliable even in high-moisture or corrosive environments

Q: What’s the difference between a bow shackle and D-shackle?
A: Bow shackles have a wider shape allowing multi-directional loads, whereas D-shackles are better for straight-line pulls.

Q: Can I use bow shackles in marine environments?
A: Yes, especially stainless steel or hot-dip galvanized versions designed for corrosion resistance in saltwater.

Q: Do the shackles come with load certifications?
A: Yes, all shackles are load-tested and supplied with relevant certifications upon request.

Q: Are custom sizes available for bulk orders?
A: Absolutely! We can accommodate bulk or project-based custom requirements.
